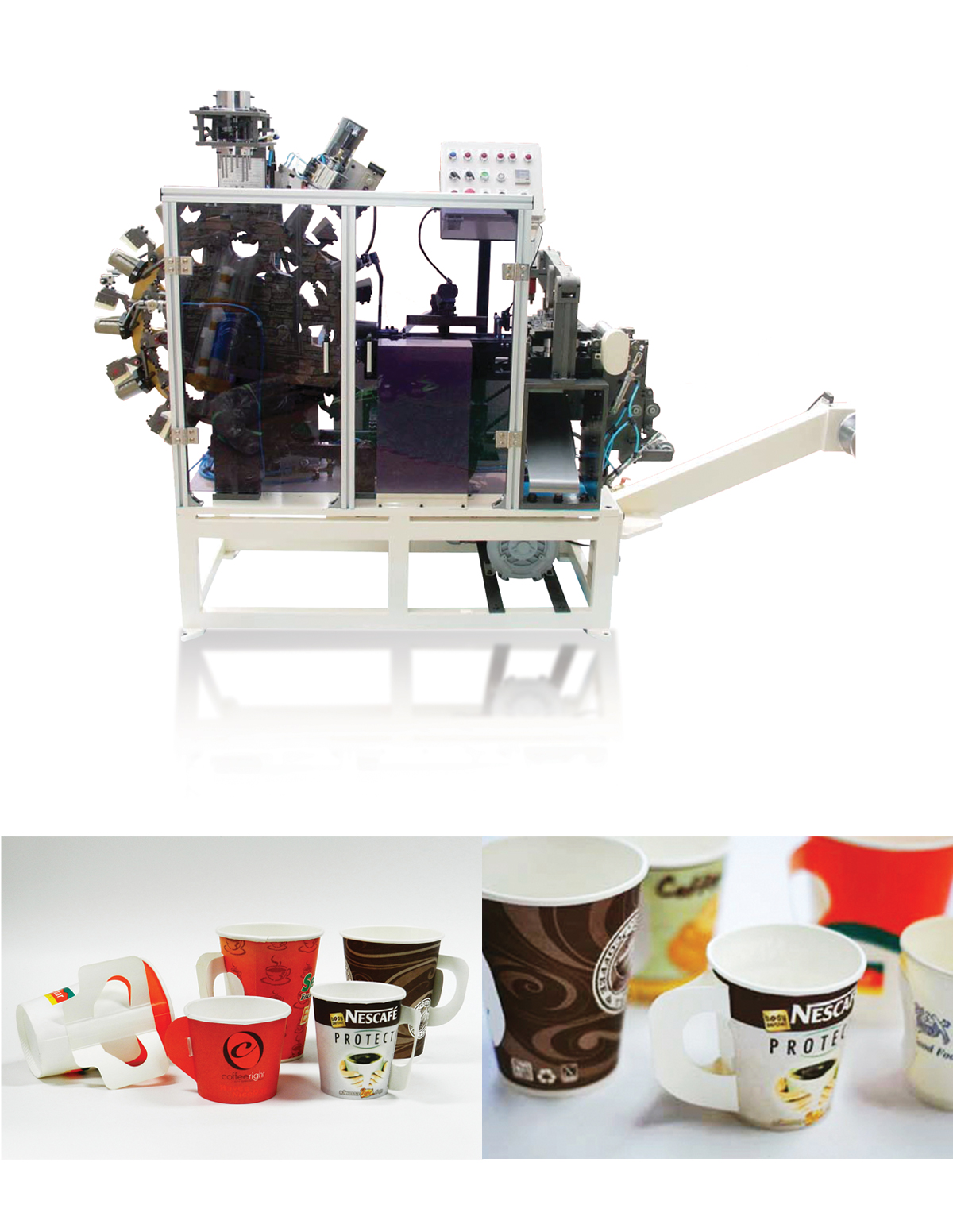

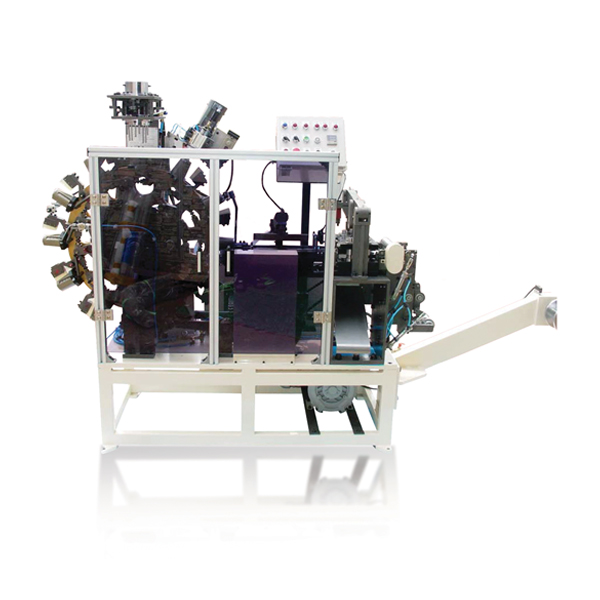

APH-150 Cup handle applicator

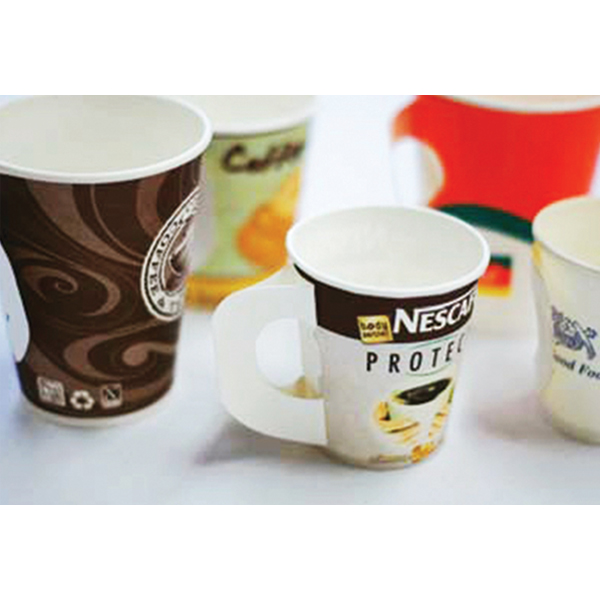

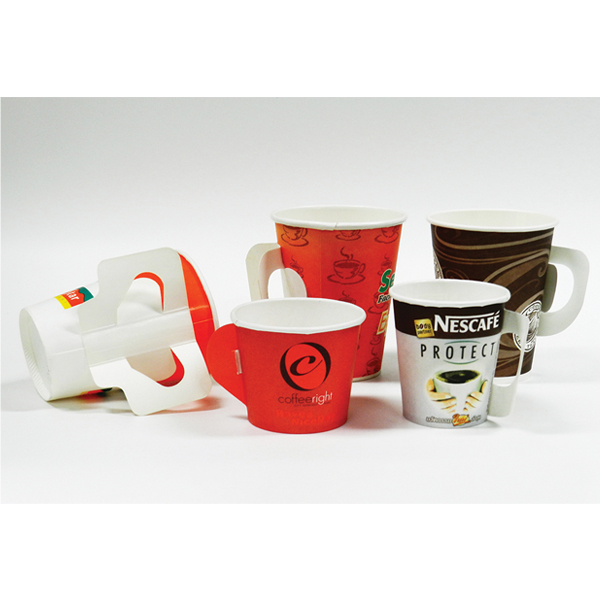

The APH-150 applies a handle to cups range from 3.5oz to 12oz, specially designed to cut down the c ost of hot coffee cups.
Up to 120PE coated paper-board handles per minute can be applied using the hot air sealing station.

Video Brochure Inquiry

Specifications

Production Speed	Max. 120 cups per min.
Sealing Method	By Hot Air
Cup Size Range	3.5oz ~ 12oz
Paper	One or Both side PE coated
Paper Weight	170gsm ~ 250gsm
Electric Power	220V, 50/60Hz, 3P, 4W
Electric Consumption	9kW
Air Requirment	1.8㎥/min. at 5Kg/㎠
Machine Weight	2,100kgs
