ACE-200 Ice cream cone sleeve forming machine

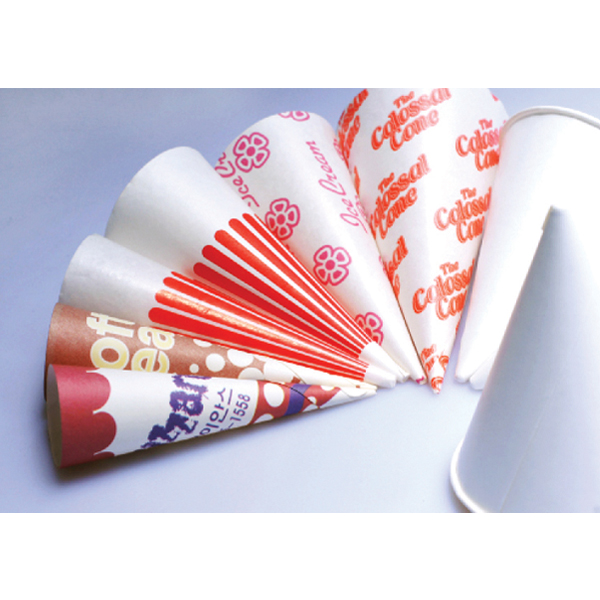

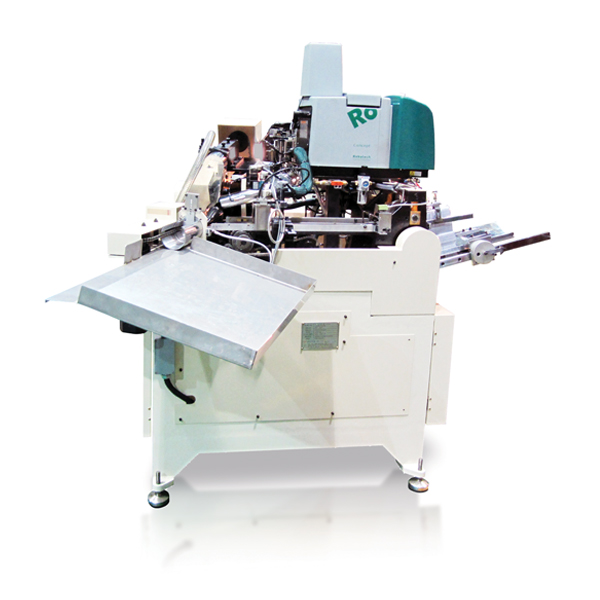

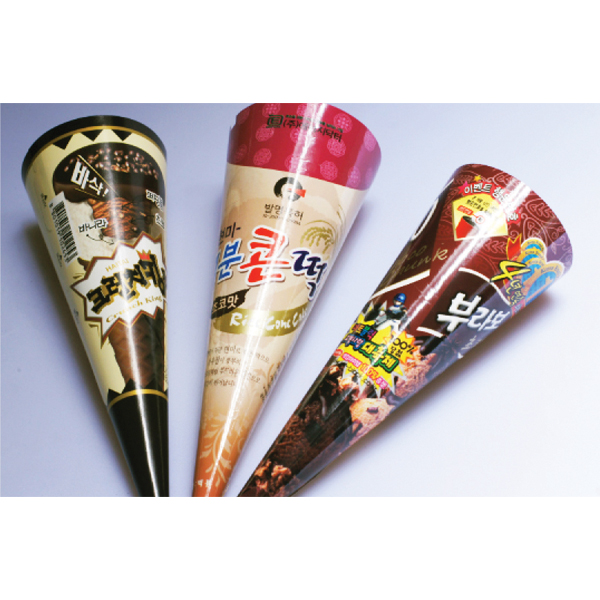

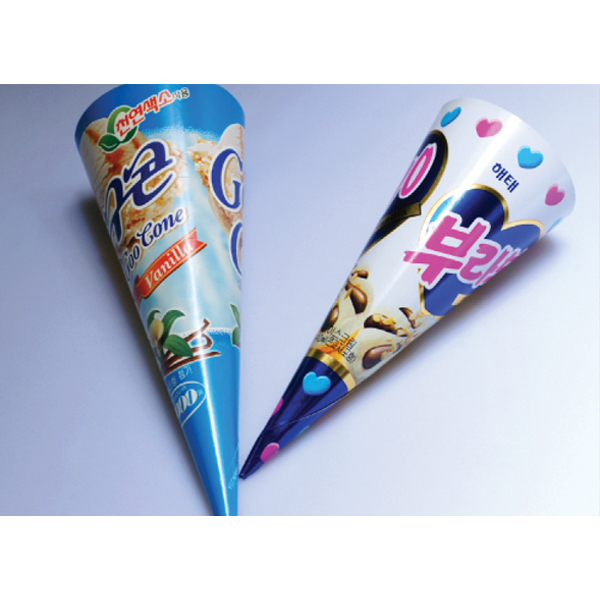

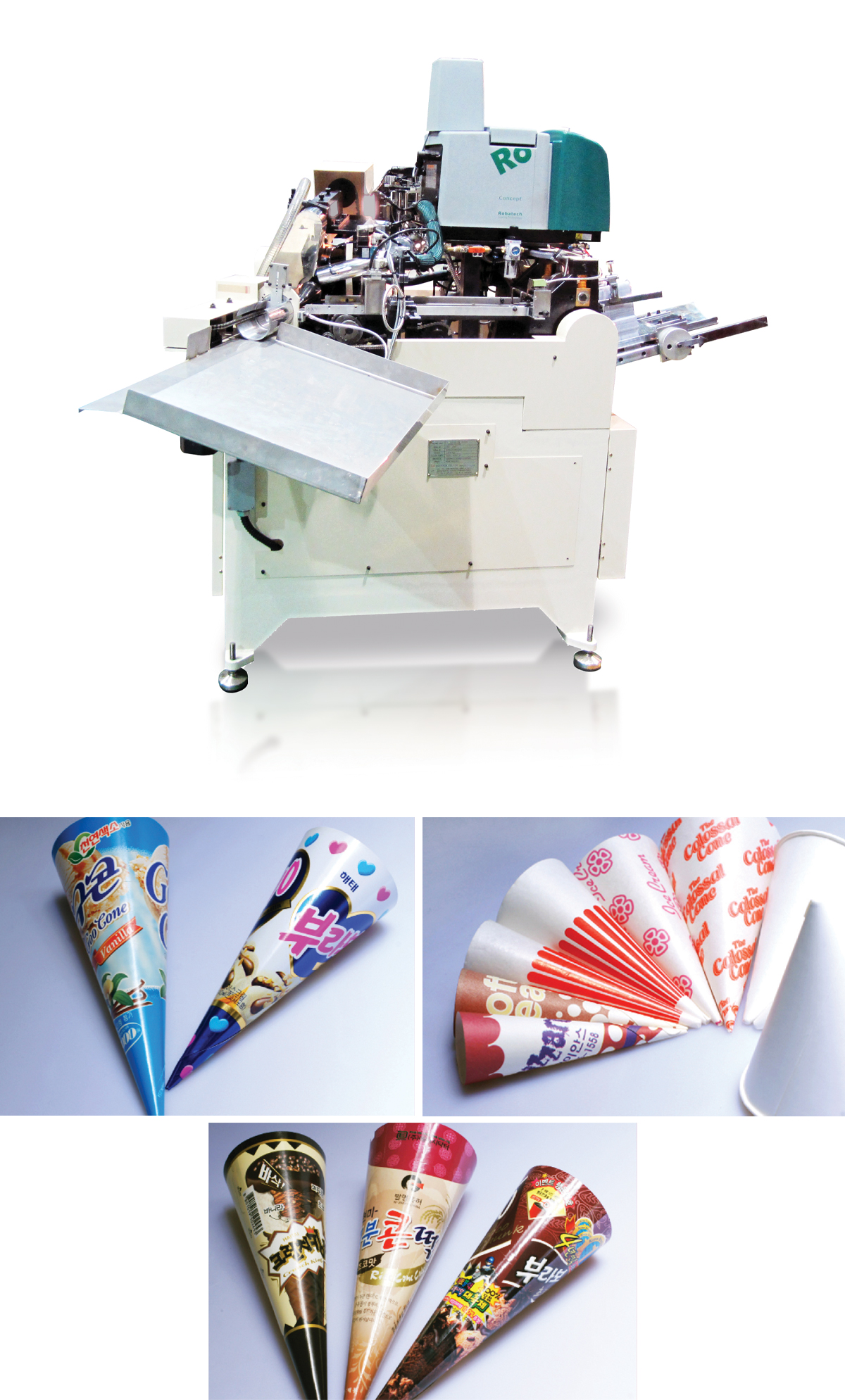

The ACE-200 produces one-piece sleeves for ice cream cone sleeve using hot melt sealing.
Up to 220 ice cream cone sleeves per minute can be formed with a 14°to 29°taper range.

Brochure Inquiry

Specifications

Production Speed	Max. 200 pcs per min.
Sealing Method	By Hot Melt
Paper Weight	100gsm ~ 160gsm
Cone Height	100mm ~ 255mm
Cone Angle	14~29 taper range
Electric Power	380V or 220V 50/60Hz, 3P
Electric Consumption	5.5kW
Air Requirment	Approx 0.5㎥/min. at 4Kg/㎠
Air Requirment	(L)1,850X(W)1,750X(H)1,800
Machine Diameter	1,200kgs
