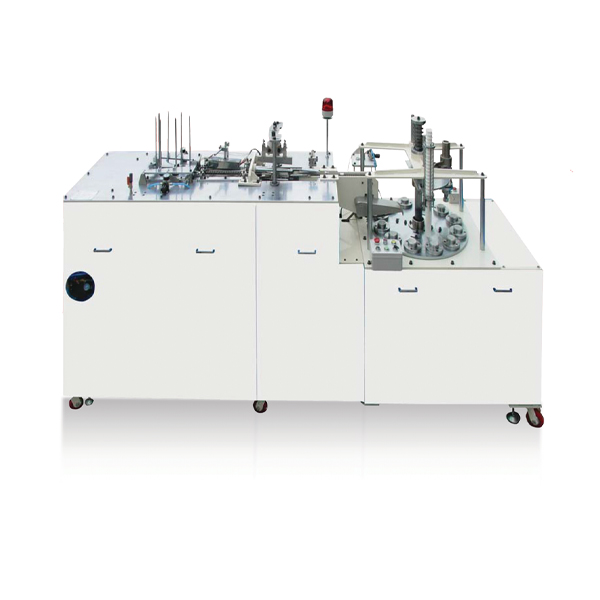

AP-400 Calippo tube forming machine

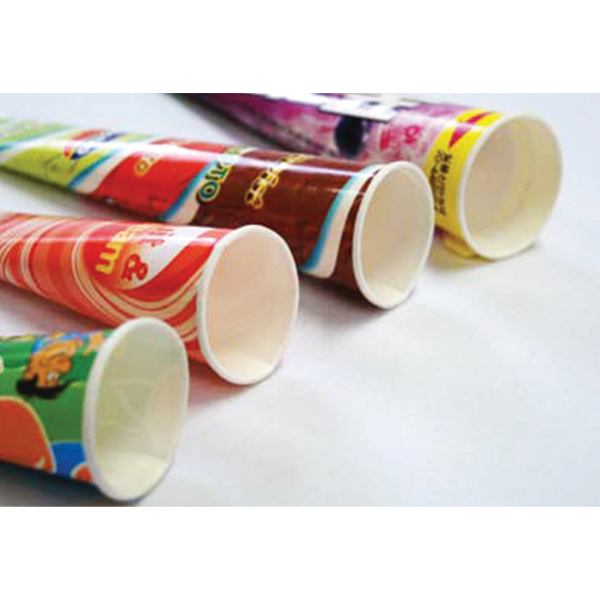

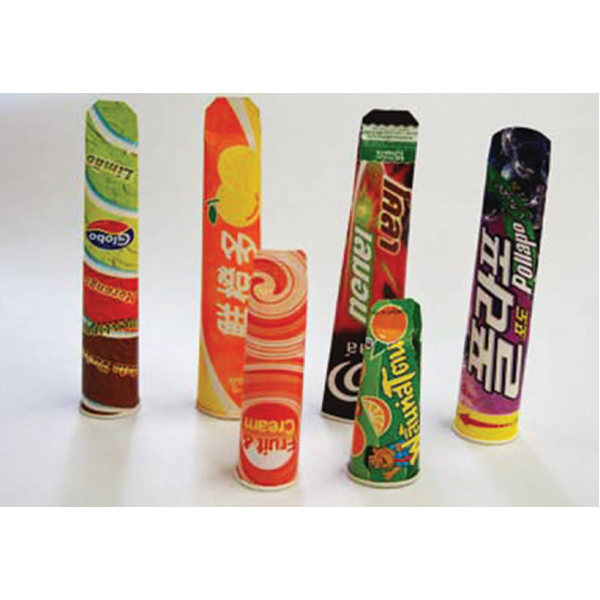

The AP-400 produces single-wrapped, one-piece containers for frozen hard ice cream and ice-lollies (popsicles). The hot air blower makes stable seals f or good printing and shape. Up to 60 paperboard tu bes per minute can be formed.

Brochure Inquiry

Specifications

Production Speed	Max. 60 pcs per min.
Sealing Method	By hot air
Tube Size	Top Diameter : 17mm ~ 50mm Height : 55mm ~ 220mm
Tube Angle	2.5 ° ~ 7 °
Paper Weight	150gsm ~ 230gsm
Electric Power	220V, 50/60Hz, 3P, 4W
Electric Consumption	15kW
Air Requirment	0.8㎥/min. at 5Kg/㎠
Machine Weight	1,500kgs
