Paper lid forming machines

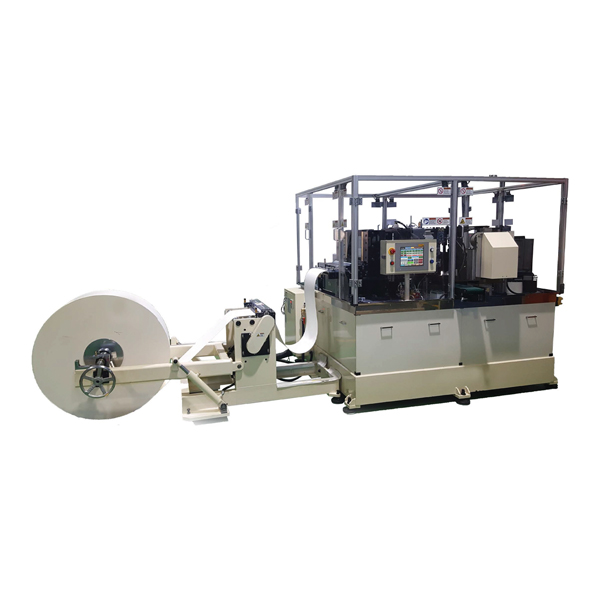

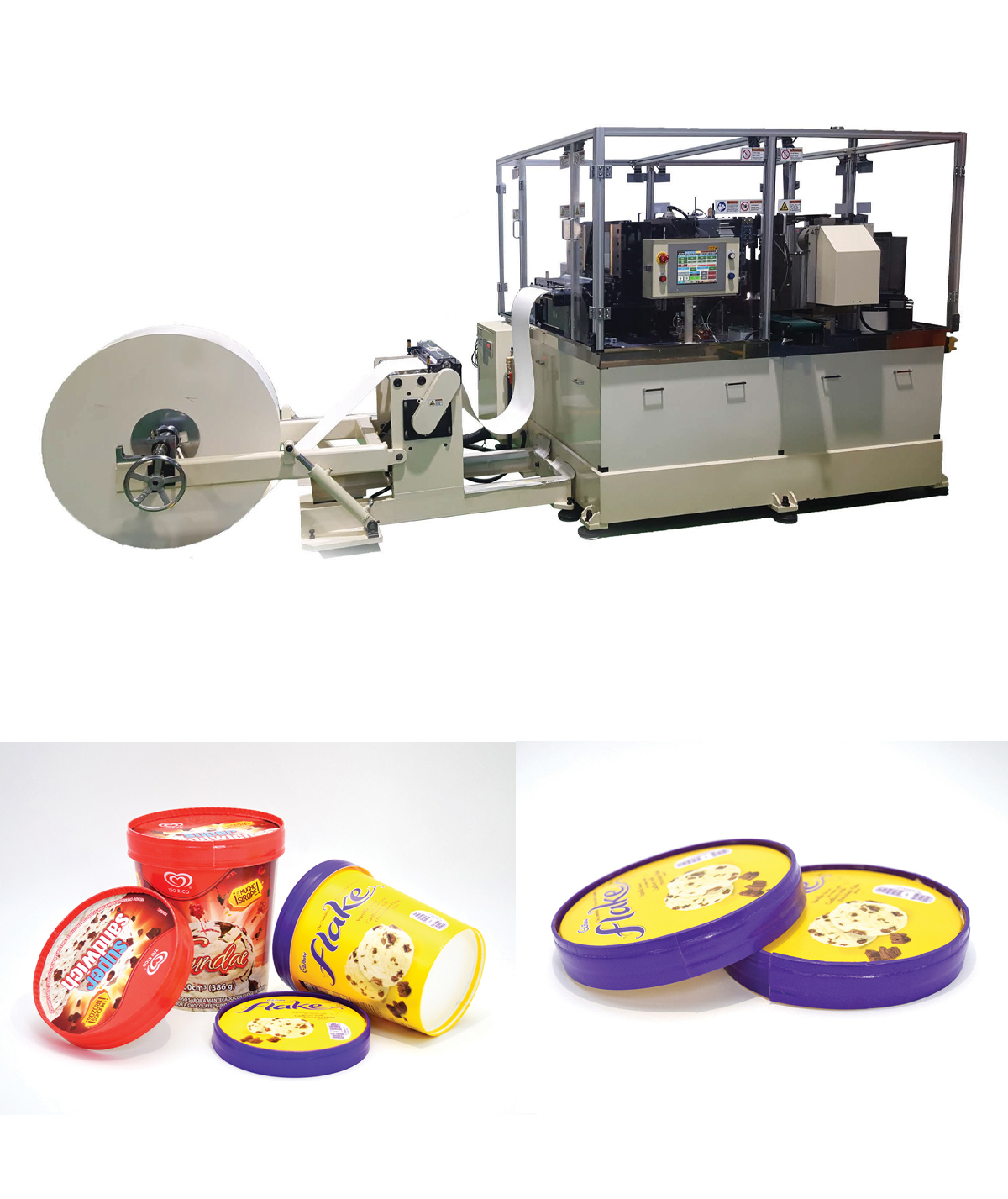

APL-1200 Paper lid forming machine (Round shape, Two pieces)

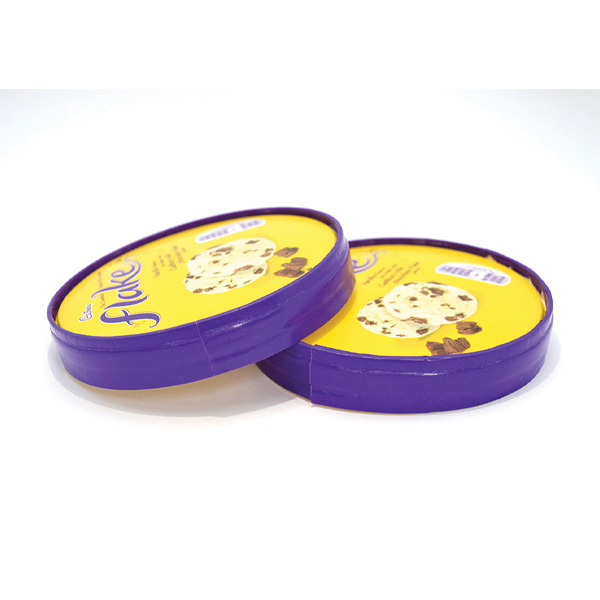

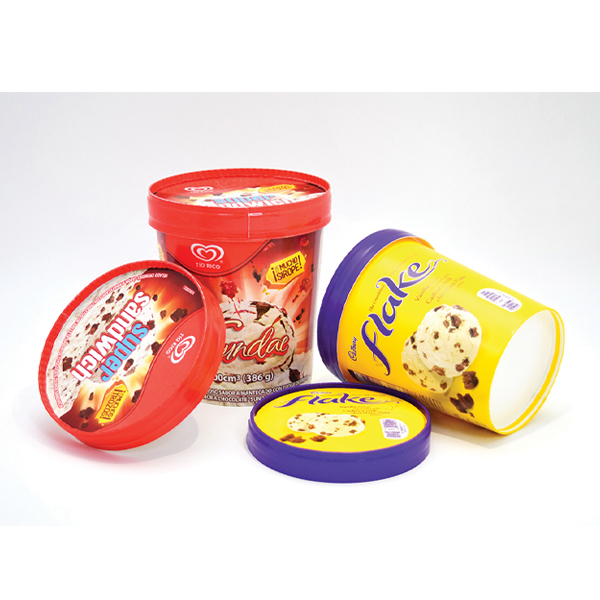

The “APL-1200” is designed to produce all sorts of paper lids such as ice cream lid, cheese container, etc. The greatest advantage of this machine is that “ APL - 1200” is not required to have the cylindrical tube winding machine separately.
It will be gr eat for space efficiency and cost saving. 2-piece p aperlid can be formed by two paper rolls, one is to use for the skirt (side wall PE coated paper), the other one is to use for the blanked disc (bottom PE coat ed paper).
It will be gr eat for space efficiency and cost saving. 2-piece p aperlid can be formed by two paper rolls, one is to use for the skirt (side wall PE coated paper), the other one is to use for the blanked disc (bottom PE coat ed paper).
Specifications
Production Speed |
Max. 120 pcs per min. |
Sealing Method |
By Hot Air |
Cup Size Range |
Diameter : 50mm ~ 130mm Height : 7mm ~ 17mm |
Paper |
One or Both side PE coated |
Paper Weight |
170gsm ~ 450gsm |
Electric Power |
220V, 50/60Hz, 3P, 4W |
Electric Consumption |
35kW |
Air Requirment |
1.4㎥/min. at 5Kg/㎠ |
Machine Weight |
6,300kgs |
