MACHINES
Paper lid forming machines

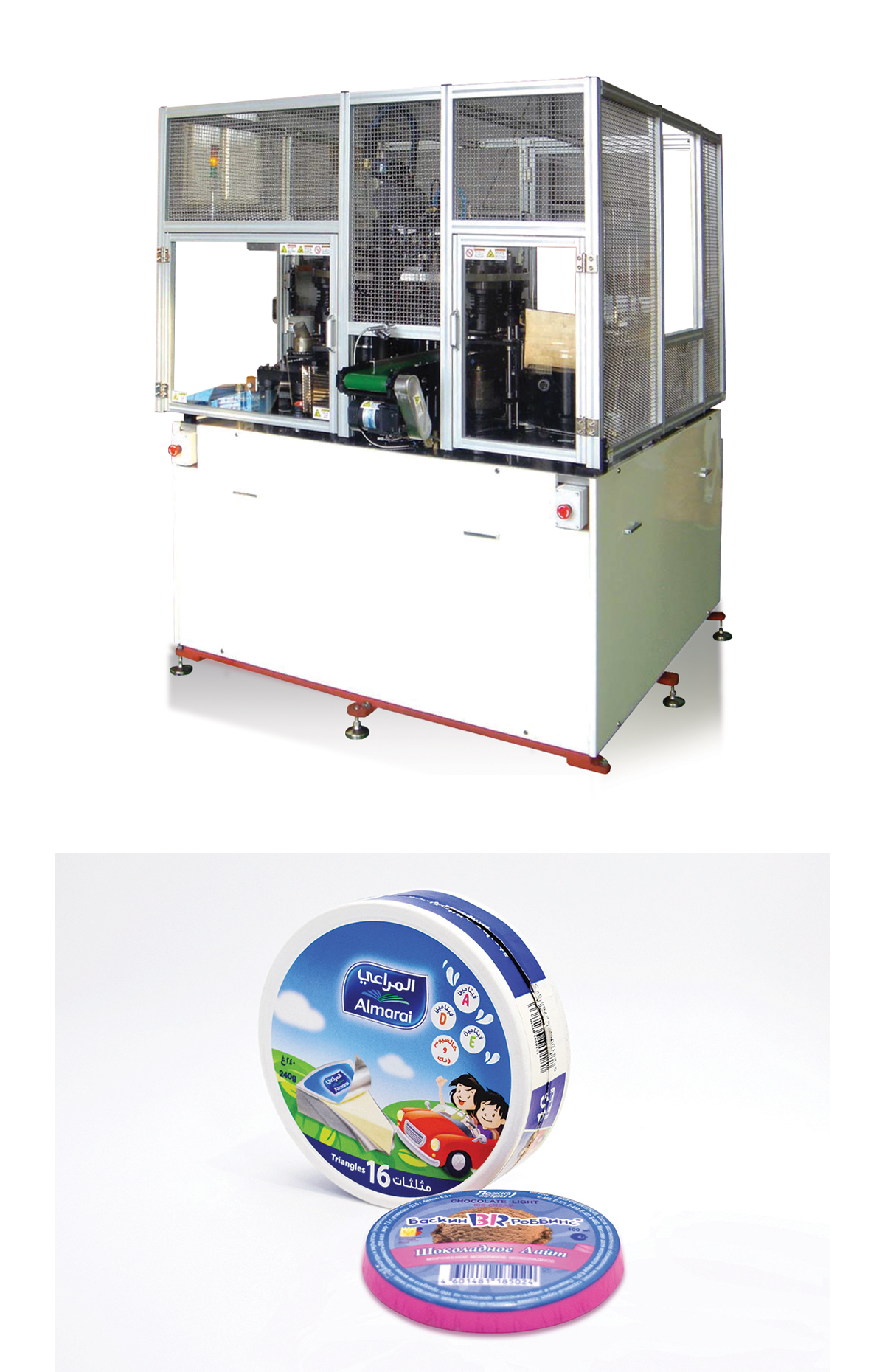

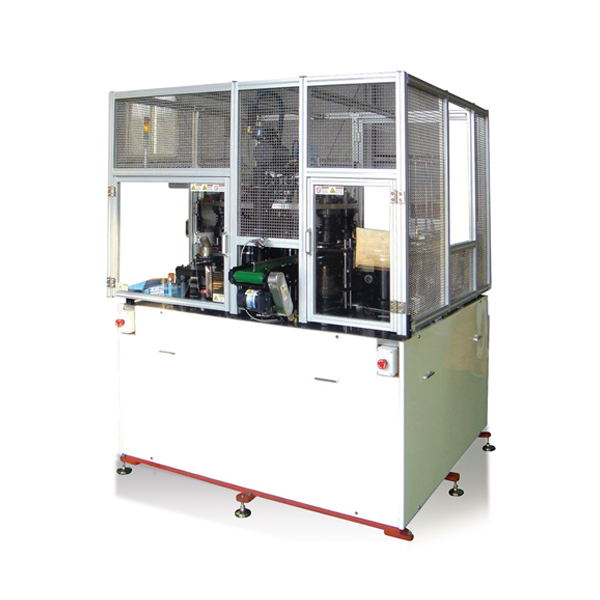

APL-600 Paper lid forming machine (Round shape, One piece)

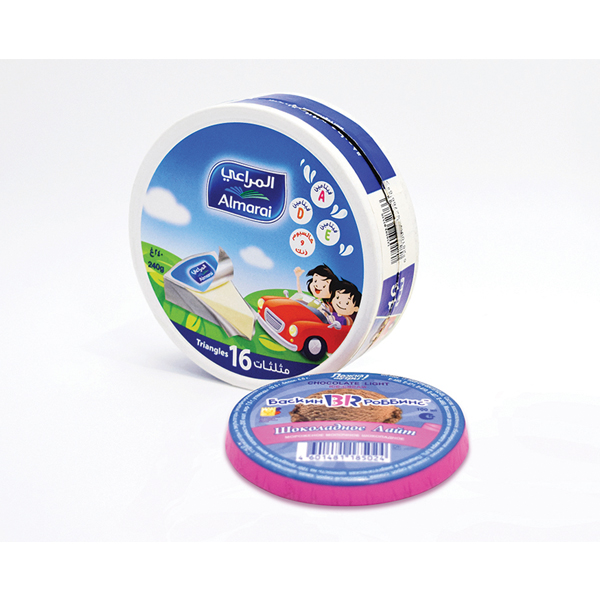

The APL-600 produces paper lids that have diameter range form 50mm to 130mm, specially designed to be made site one piece of cardboard disk.
Up to 100 PE coated paperboard lids per minute can be produced using the hot air sealing station.
Up to 100 PE coated paperboard lids per minute can be produced using the hot air sealing station.
Specifications
Production Speed |
Max. 100 pcs per min. |
Sealing Method |
By Hot Air |
Cup Size Range |
Diameter : 50mm ~ 130mm Height : 7mm ~ 17mm |
Paper |
One or Both side PE coated one piece disk |
Paper Weight |
170gsm ~ 250gsm |
Electric Power |
220V, 50/60Hz, 3P, 4W |
Electric Consumption |
12kW |
Air Requirment |
1.4㎥/min. at 5Kg/㎠ |
Machine Weight |
2,200kgs |
