MACHINES

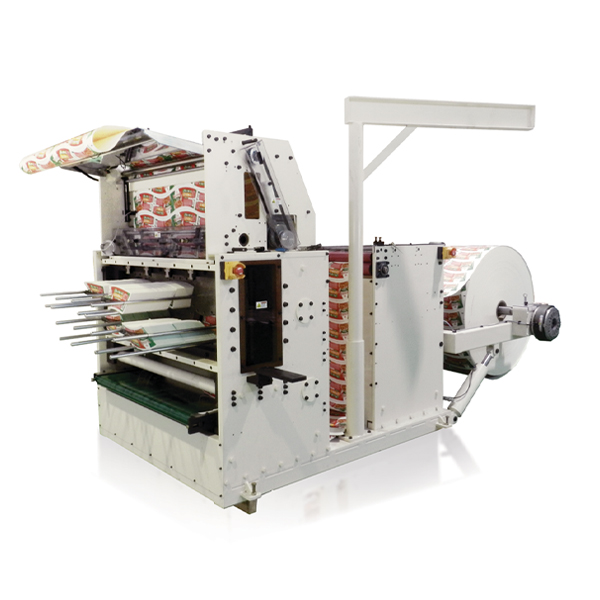

Punching machines
Specifications
Production Speed |
Max. 300 strokes per min. |

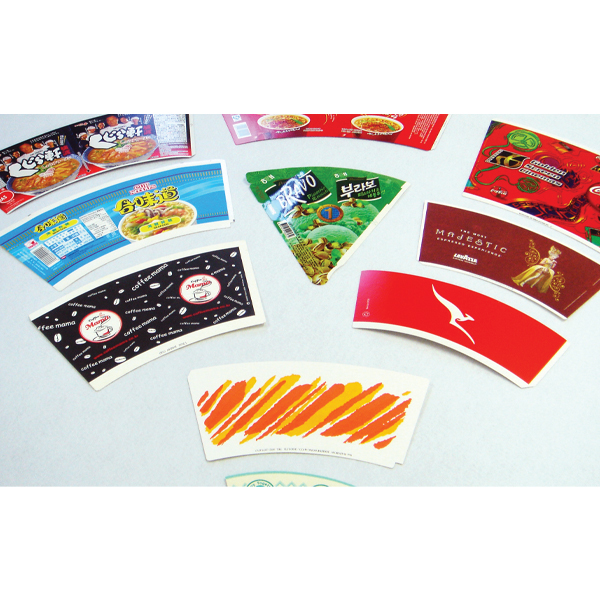

Blank Size Range |
Every shape designed |
Reel Diameter |
Max, 1,600mm |
Roll Width |
Max, 1,150mm |
Control System |
AC Servo motor for pitch cutting |

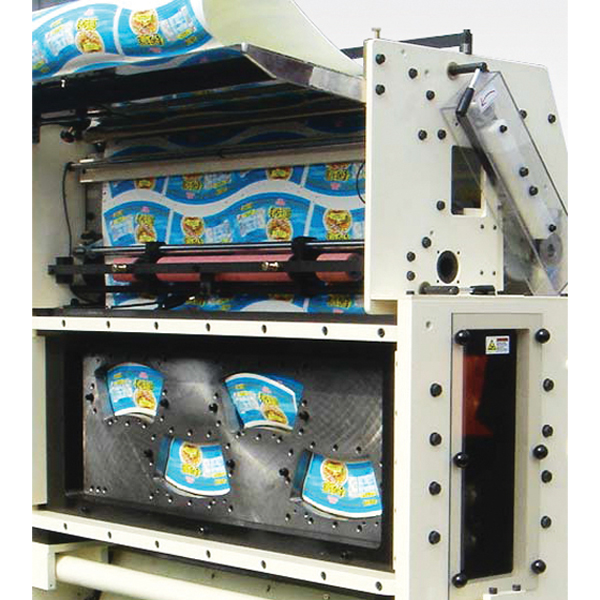

Cutting Method |
Die cutting with 2 ~ 5 cavities |
Electric Power |
220V, 50/60Hz, 3P, 4W |
Electric Consumption |
7kW |
Air Requirment |
No needed |
Machine Weight |
1,700kgs |
