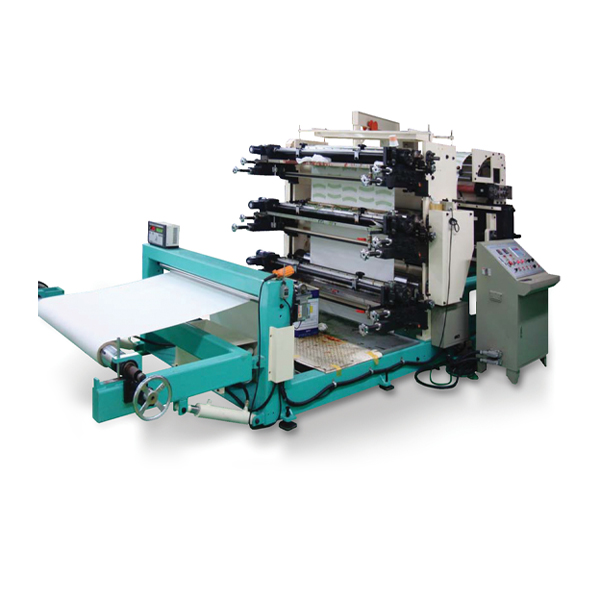

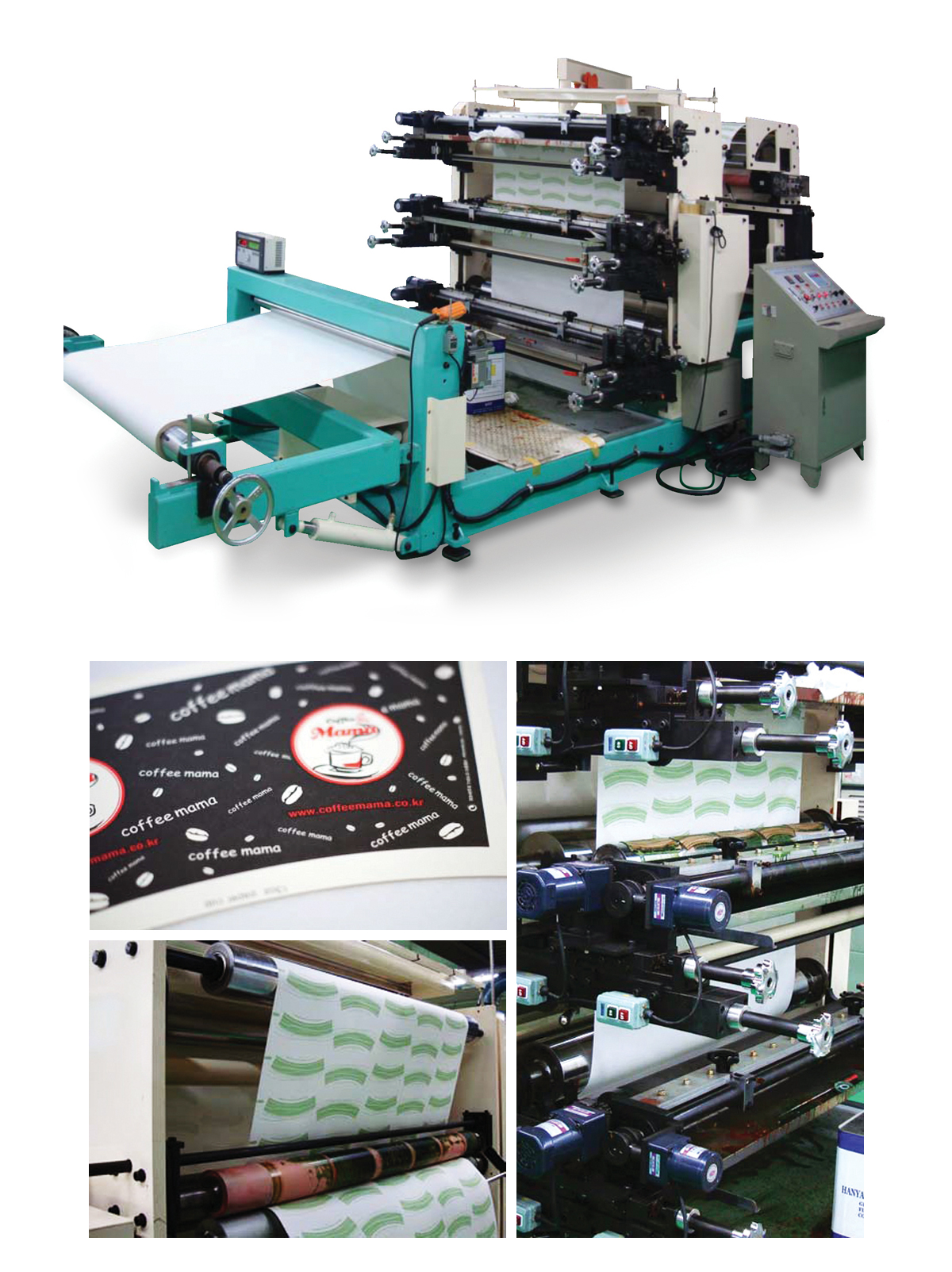

ASP-400 Printing & Punching machine > Punching machines

MACHINES

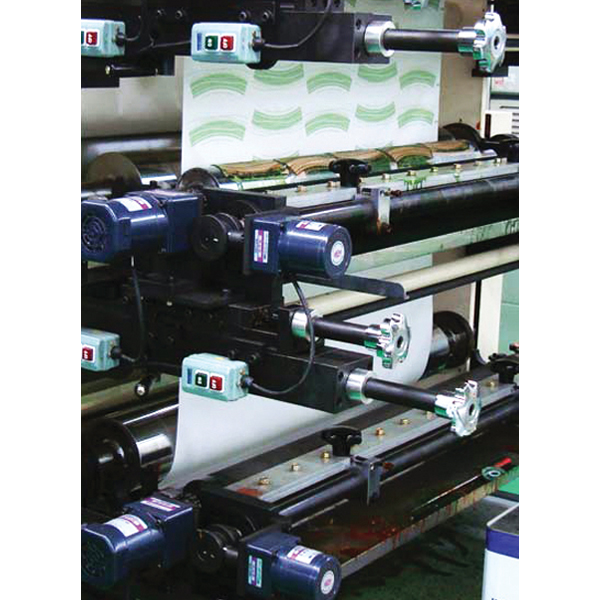

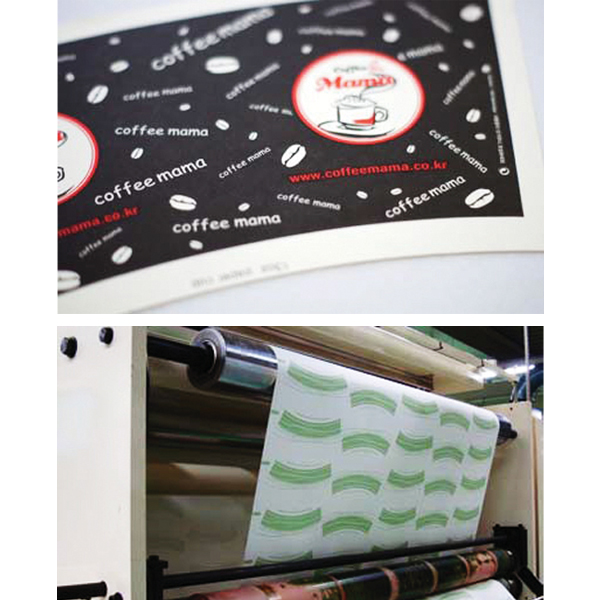

Designed for flexographic printing up to 4 colors of sidewall blanks and cut the blanks with punching machine AP-2000 by one line.

Video Brochure Inquiry

Specifications

Production Speed	Max.300 strokes per min.
Blank Size Range	Cup size 3oz 36oz
Reel Diameter	Max, 1,600mm
Roll Width	Max, 1,150mm
Control System	AC Servo motor for pitch cutting
Cutting Method Die	Die cutting with 2~5 cavities
Electric Power	220V, 50/60Hz, 3P, 4W
Electric Consumption	7kW
Machine Weight	1,700kgs
