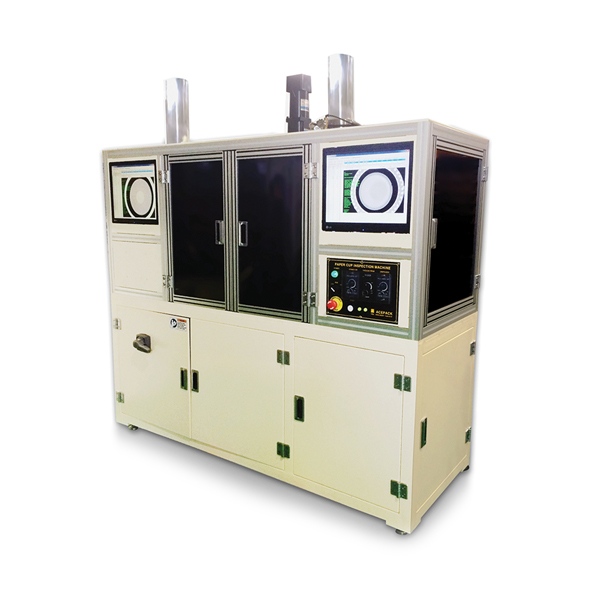

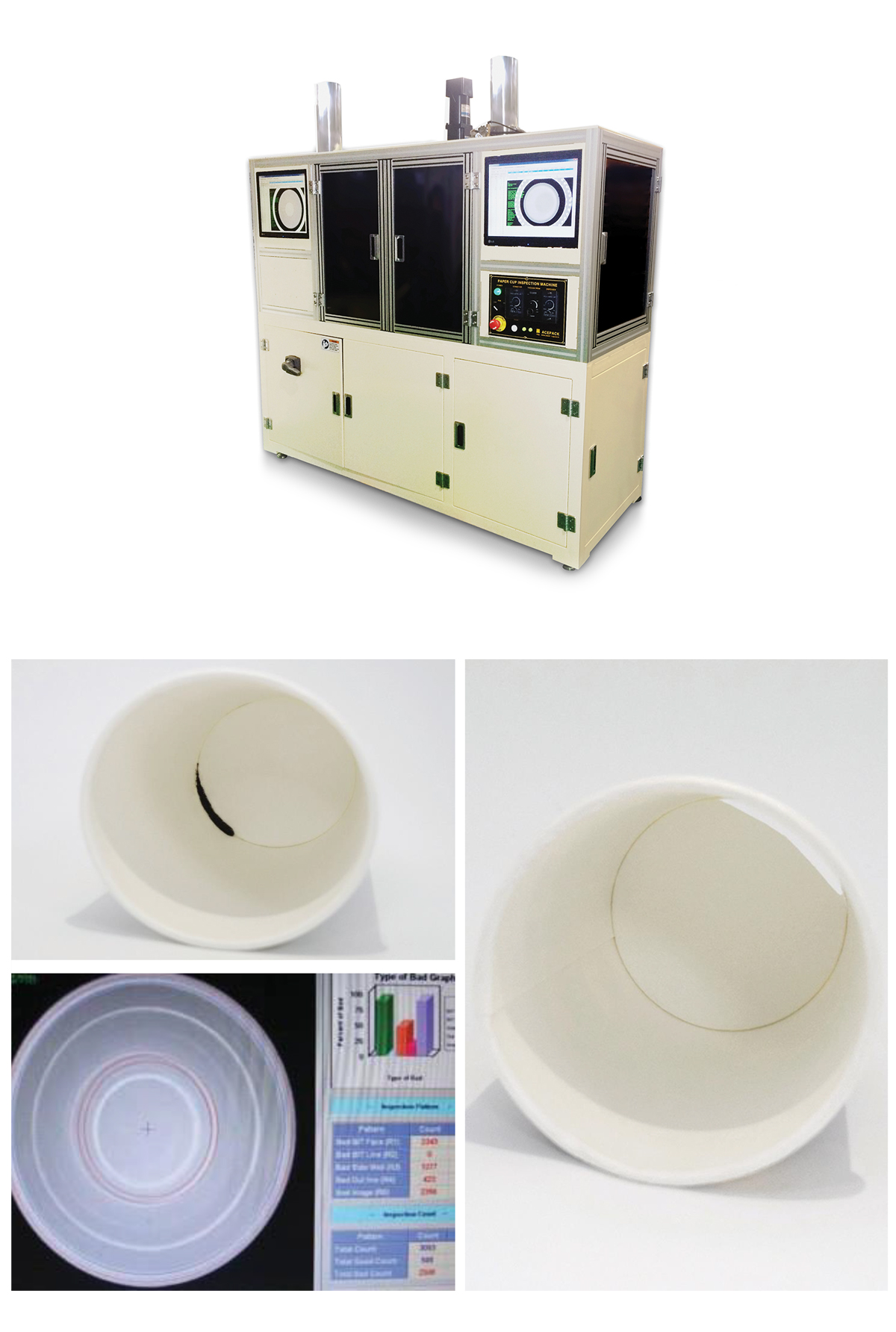

CAT-200 Vision inspector
The CAT－200 inspects automatically for pollutants inside paper cups. It also detects flaws in the shape of the paper cups using cameras and sensors.
This vision system distinguishes and automatically separates defective ups moving on high－speed conveyor. This automatic equipment can relieve fatigue and human error during the inspection process.
The CAT－200 inspects
– Contamination inside of paper cups like ink, ma-chine oil, splashes, point dirt, scum, hair, insect and more

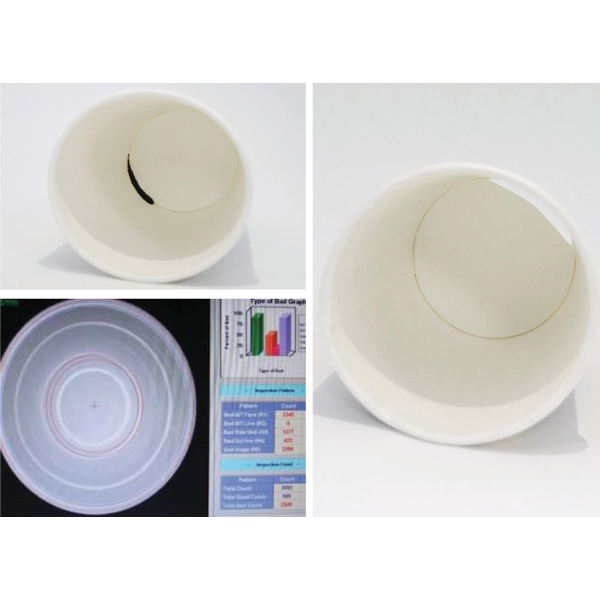

－Paper cup shape inspection, cut bottom paper, crushed cup shape and more
This vision system distinguishes and automatically separates defective ups moving on high－speed conveyor. This automatic equipment can relieve fatigue and human error during the inspection process.
The CAT－200 inspects
– Contamination inside of paper cups like ink, ma-chine oil, splashes, point dirt, scum, hair, insect and more
－Paper cup shape inspection, cut bottom paper, crushed cup shape and more
Specifications
Inspection Speed |
Max. 200 cups per min. |
Cup Size Range |
Cup size 3oz ~ 36oz |
Inspection System |
Vision Software/Camera/Illuminator |
Electric Power |
220V, 50/60Hz, 3P, 4W |
Electric Consumption |
4kW |
Air Requirment |
1.2㎥/min. at 5Kg/㎠ |
Machine Weight |
600kgs |
