Outer sleeve forming machines

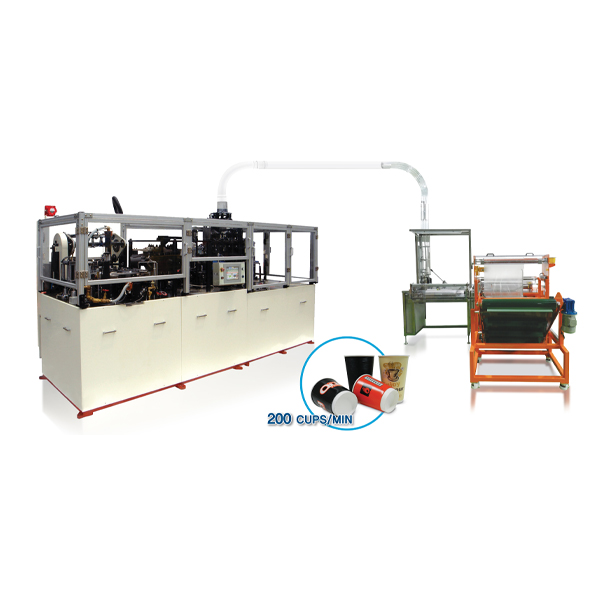

EAGLE-1800 OW Outer sleeve forming machine

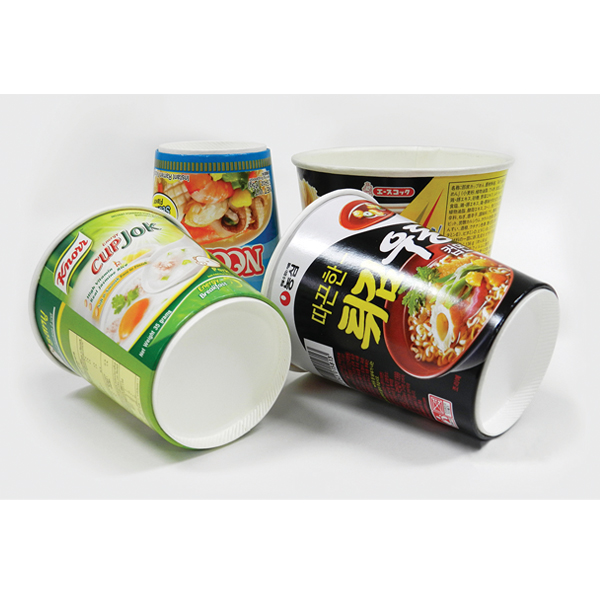

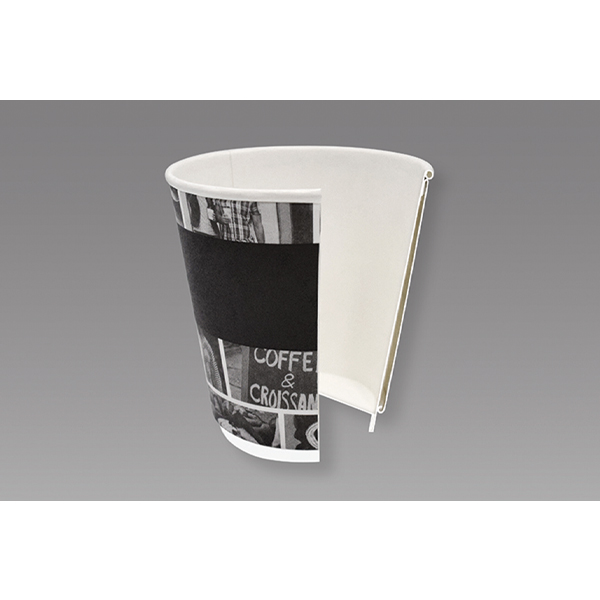

The EAGLE-1800 OW outer sleeve paper forming machine is suitable for the production of insulated double wall cups for hot coffee, hot noodles and soups. It is excellent for better insulation to be created air space with top curl function on the special double wall machine.
The EAGLE-1800 OW has a very good reputation with the major instant noodle companies in China an d Japan.
- Max. 200 cups / min production speed with stability and long term operation
- Suitable for air insulated double wall cups for hot drinks and foods
- A full range of cup sizes from 4oz to 36oz
The EAGLE-1800 OW has a very good reputation with the major instant noodle companies in China an d Japan.
- Max. 200 cups / min production speed with stability and long term operation
- Suitable for air insulated double wall cups for hot drinks and foods
- A full range of cup sizes from 4oz to 36oz
Specifications
Production Speed |
Max. 200 cups per min. |
Cup Size Range |
4oz ~ 36oz |
Sealing Method |
By Cold Glue or Hot Melt |
Paper |
Non coated duplex or others |
Paper Weight |
170gsm ~ 350gsm |
Electric Power |
220V, 50/60Hz, 3P, 4W |
Electric Consumption |
15kW |
Air Requirment |
1.2㎥/min. at 5Kg/㎠ |
Machine Weight |
6,000kgs |
