MACHINES
Paper cup & Bucket forming machines

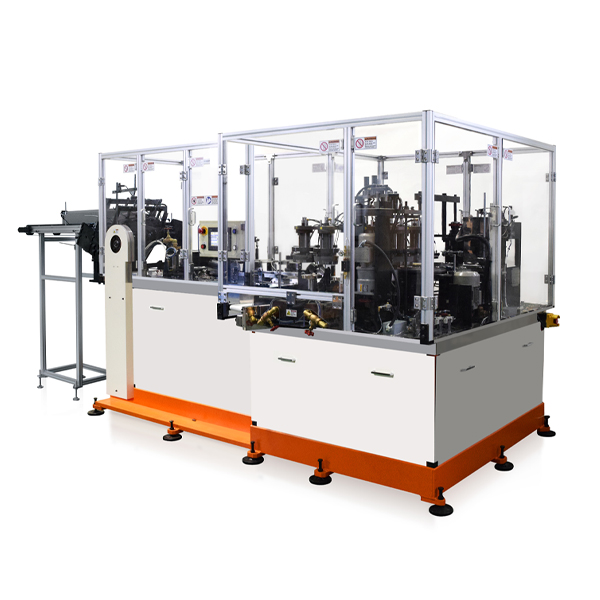

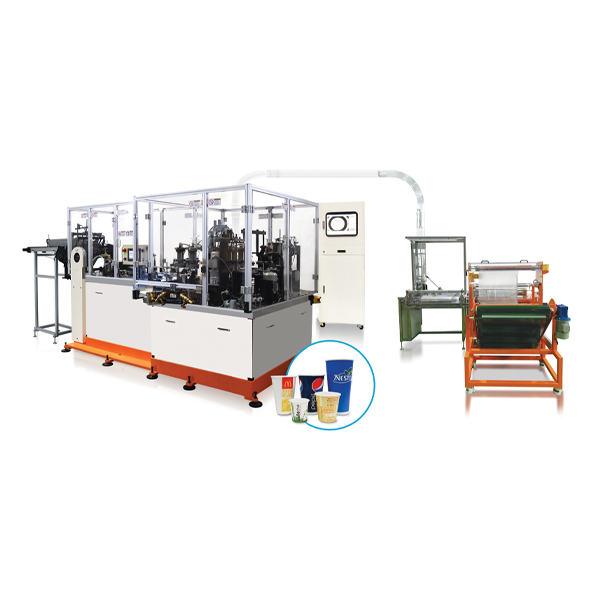

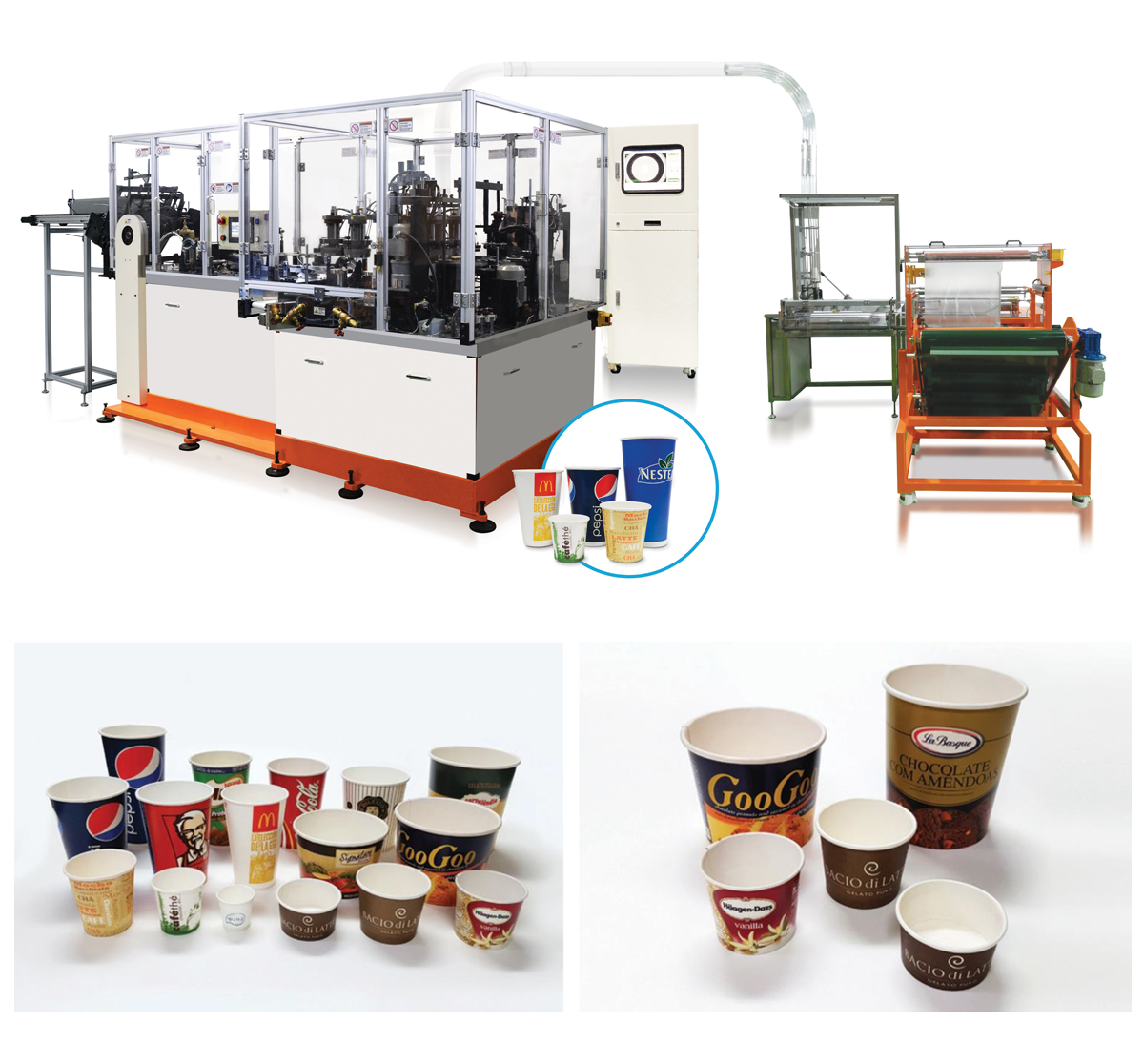

EAGLE-700 Paper Cup forming machine
Our remarkable new development “ EAGLE - 700” minimizes air and electricity consumption to produce paper cup at the capacity of 130 ~ 150 cups per minute, which is a highly reliable machine at a reasonable price.
This machine will accommodate a full range of cup sizes from 4oz to 36oz with easy and quick mold changes. The“EAGLE-700”features all gear driven ma in shafts type and there is no chain used at all.
- Simple Structure
- High quality Cost-effective New Item “Minimizing air and electricity consumption”
- All gear driven main shafts (no chain used)
- Full range of cup sizes from 4oz to 36oz with quick tooling change
- Production speed up to 130 ~ 150 cups per min.
- Touch Screen Control
This machine will accommodate a full range of cup sizes from 4oz to 36oz with easy and quick mold changes. The“EAGLE-700”features all gear driven ma in shafts type and there is no chain used at all.
- Simple Structure
- High quality Cost-effective New Item “Minimizing air and electricity consumption”
- All gear driven main shafts (no chain used)
- Full range of cup sizes from 4oz to 36oz with quick tooling change
- Production speed up to 130 ~ 150 cups per min.
- Touch Screen Control
Specifications
Production Speed |
130 ~ 150 cups per min. |
Cup Size Range |
4oz ~ 36oz |
Sealing Method |
By Hot Air |
Paper |
One or Both side PE coated |
Paper Weight |
170gsm ~ 450gsm |
Electric Power |
220V, 50/60Hz,3P, 4W |
Electric Consumption |
25kW |
Air Requirment |
5HP |
Machine Weight |
4,500kgs |
