MACHINES
Paper cup & Bucket forming machines

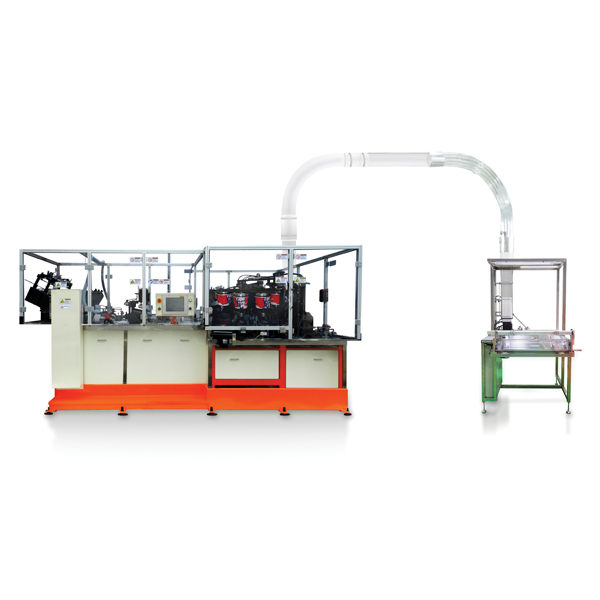

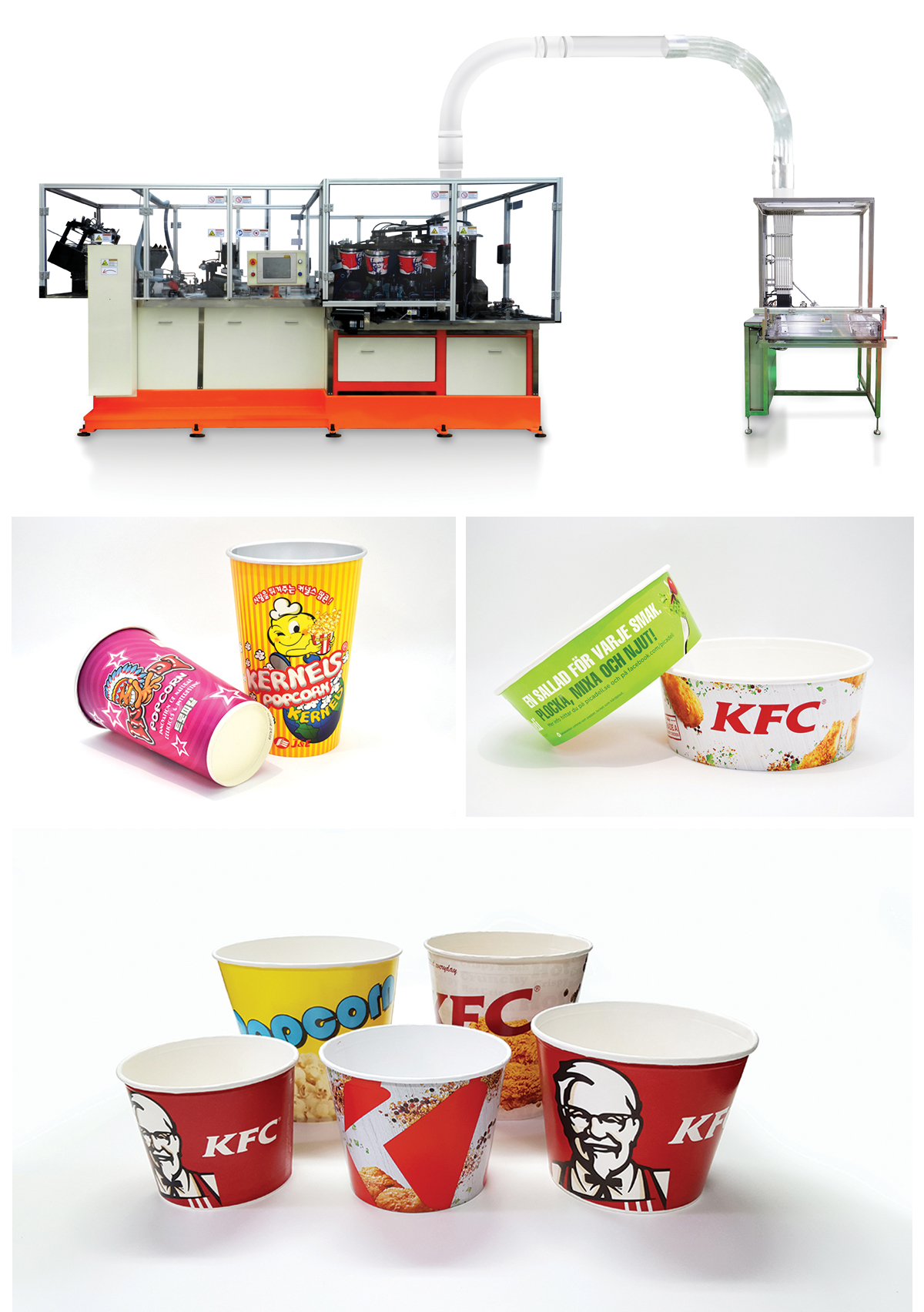

EAGLE-700E Bucket forming machine

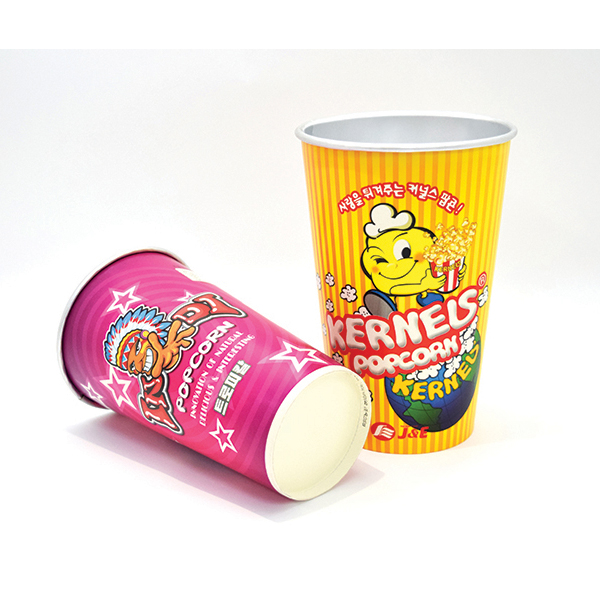

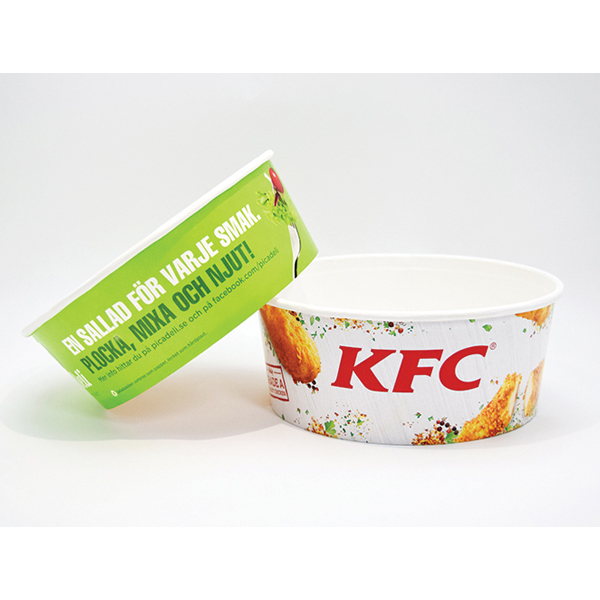

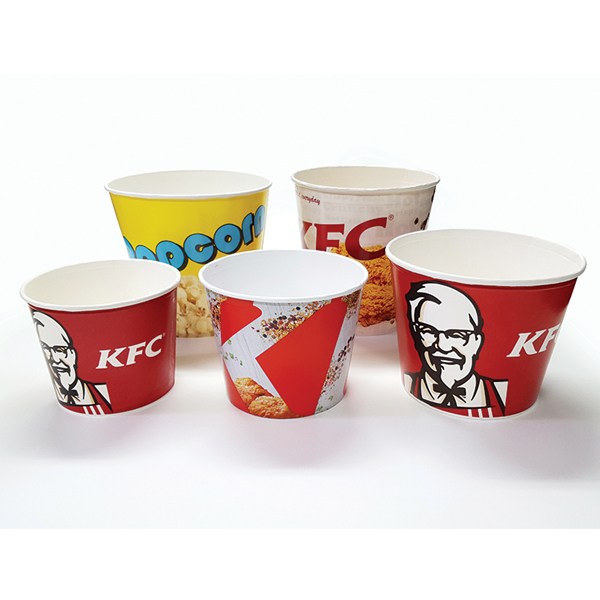

The EAGLE-700E produces large paper buckets and cups (40oz to 170oz) for fried chicken, popcorn and snacks using double or single-sided PE coat-ed, and also glue sealed, paperboard.
The EAGLE-700E is a very economic and practical machine due to small area it occupies and the low production and operating costs. Up to 60 cups per minute can be produced.
The EAGLE-700E provides quick and simple tooling changeover, maintenance and operation.
The EAGLE-700E is a very economic and practical machine due to small area it occupies and the low production and operating costs. Up to 60 cups per minute can be produced.
The EAGLE-700E provides quick and simple tooling changeover, maintenance and operation.
Specifications
Production Speed |
Max. 60 cups per min. |
Cup Size Range |
36oz ~ 170oz |
Sealing Method |
By Hot Air/Cold Glue/Hot melt |
Paper |
One or Both side PE coated or Non coated |
Paper Weight |
180gsm ~ 550gsm |
Electric Power |
220V, 50/60Hz, 3P, 4W |
Electric Consumption |
15kW |
Air Requirment |
1.8㎥/min. at 5Kg/㎠ |
Machine Weight |
4,000kgs |
